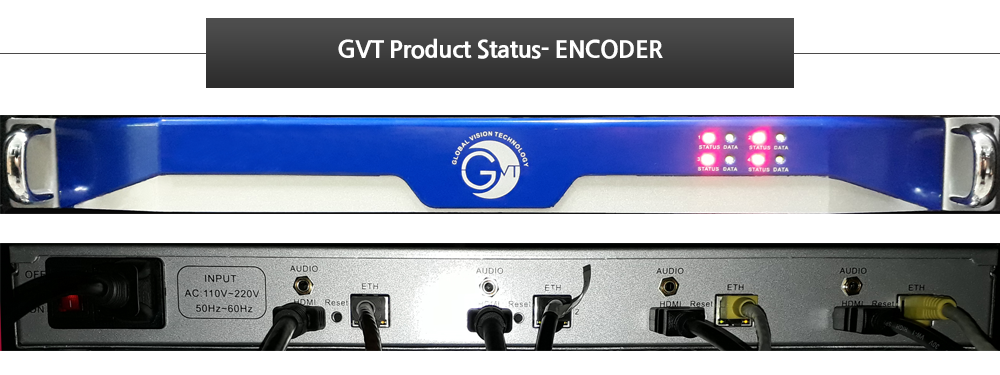

ENCODER
> PRODUCTS > ENCODER
| H.265 HEVC & H.264 AVC | |
| Specification | |
| Input | |
| Video | 1.4 HDMI HDCP |
| HDMI resolution ratio | 1920×1080_60i/60P, 1920×1080_50i, 1280×720_60p and 1280×720_50p and so on |
| Encoding | H.265 HEVC,H.264 AVC Profile 4.2 |
| Code rate | 16kbit/s～32Mbit/s |
| Code rate control | CBR/VBR |
| GOP type | Adjustable |
| Audio | |
| Coded format | AAC AAC+ MP3 G.711 |
| Sampling rate | 44.1K 48K |
| Bit rate | 48K，64K，96K，128K，160K，192K，256K |
| Sampling precision | 24 bit |
| Code rate | 64Kb/s~384Kb/s |
| System | |
| RJ45 | 1000M Ethernet connection |
| Stream | HTTP, UDP,FLV,HLS,RTSP, RTMP and ONVIF protocols |
| Configuration interface | WEB operation interface |
| Updating | Software update |
| General | |
| Size | 89*103*29mm |
| Net Weight | 0.3KG |
| Temperature range | -20~80℃(workable)，-20~80℃(stoarge) |
| Power supply | 12V/1A or 5V/2A |
| Power consumption | 5W |
