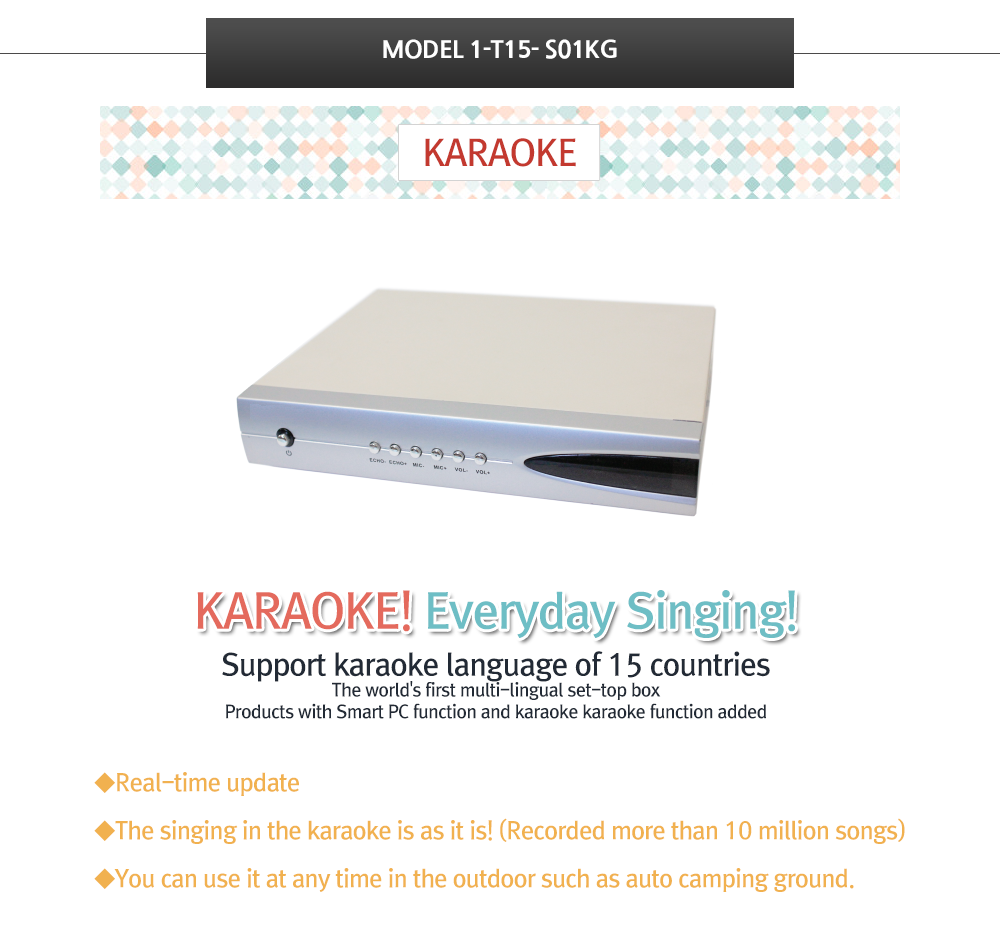

> PRODUCTS > Android Settop- MODEL 1-T15- S01KG

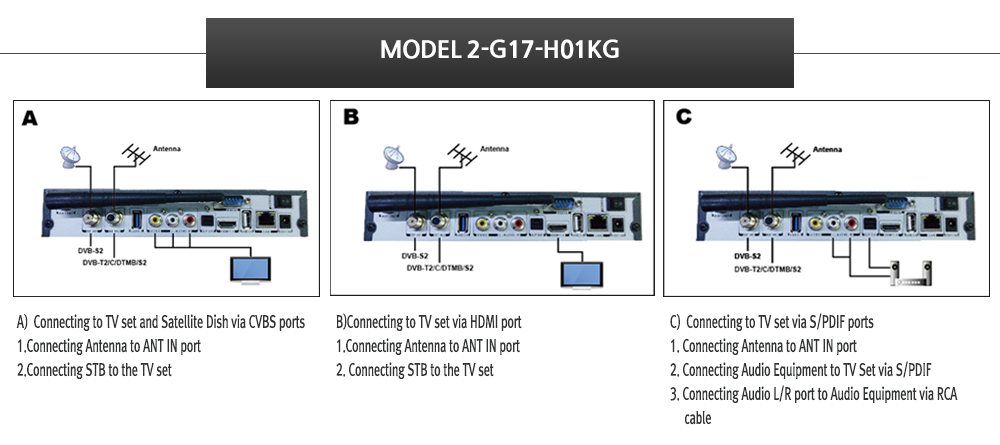

- MODEL 2-G17-H01KG

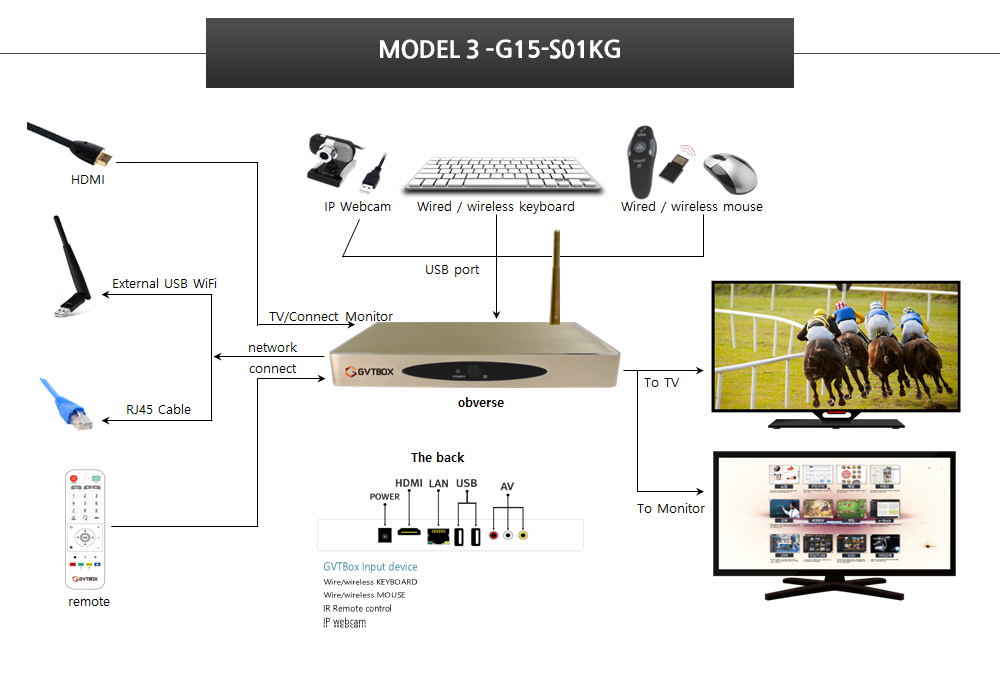

- MODEL 3 –G15-S01KG
|

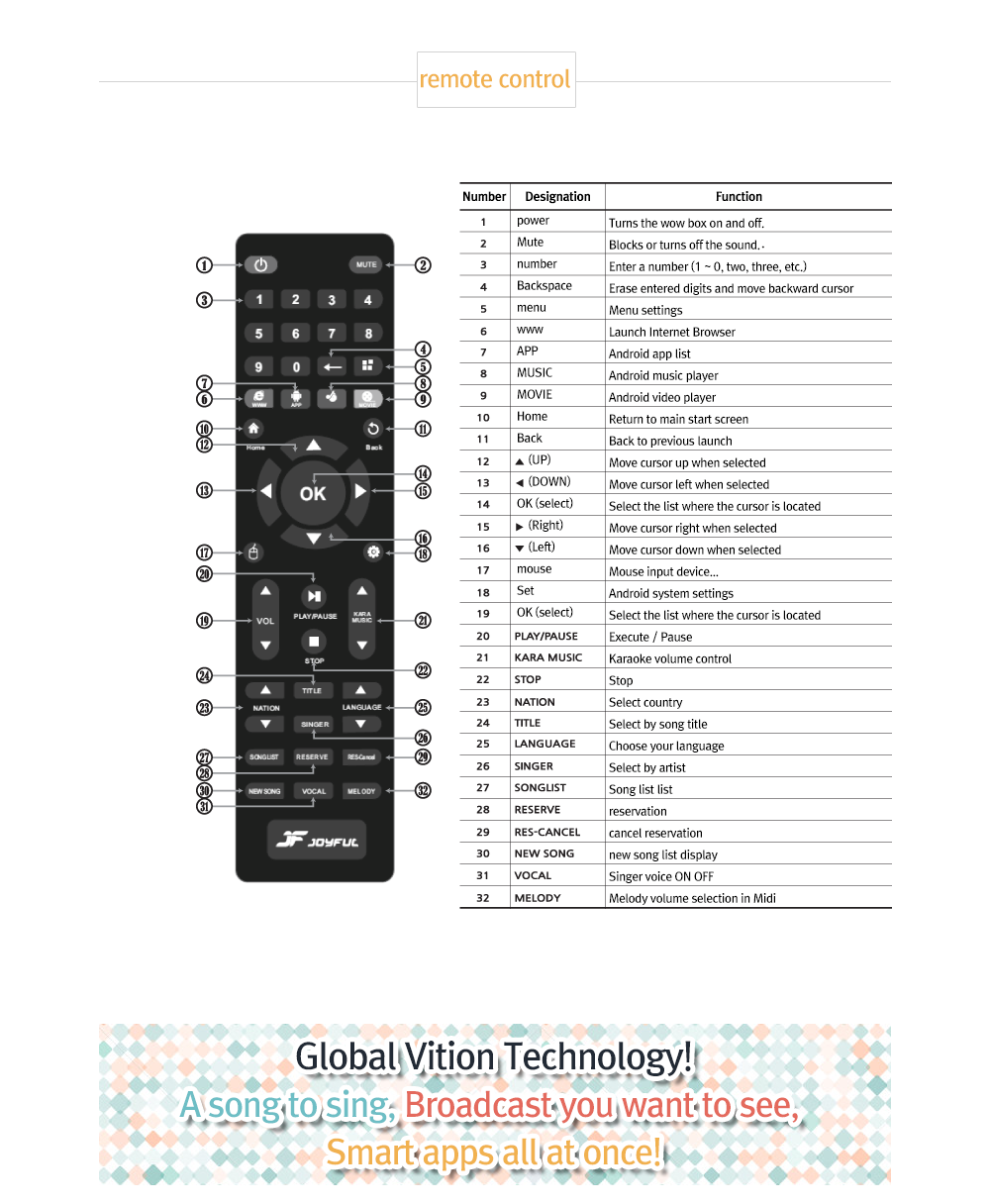

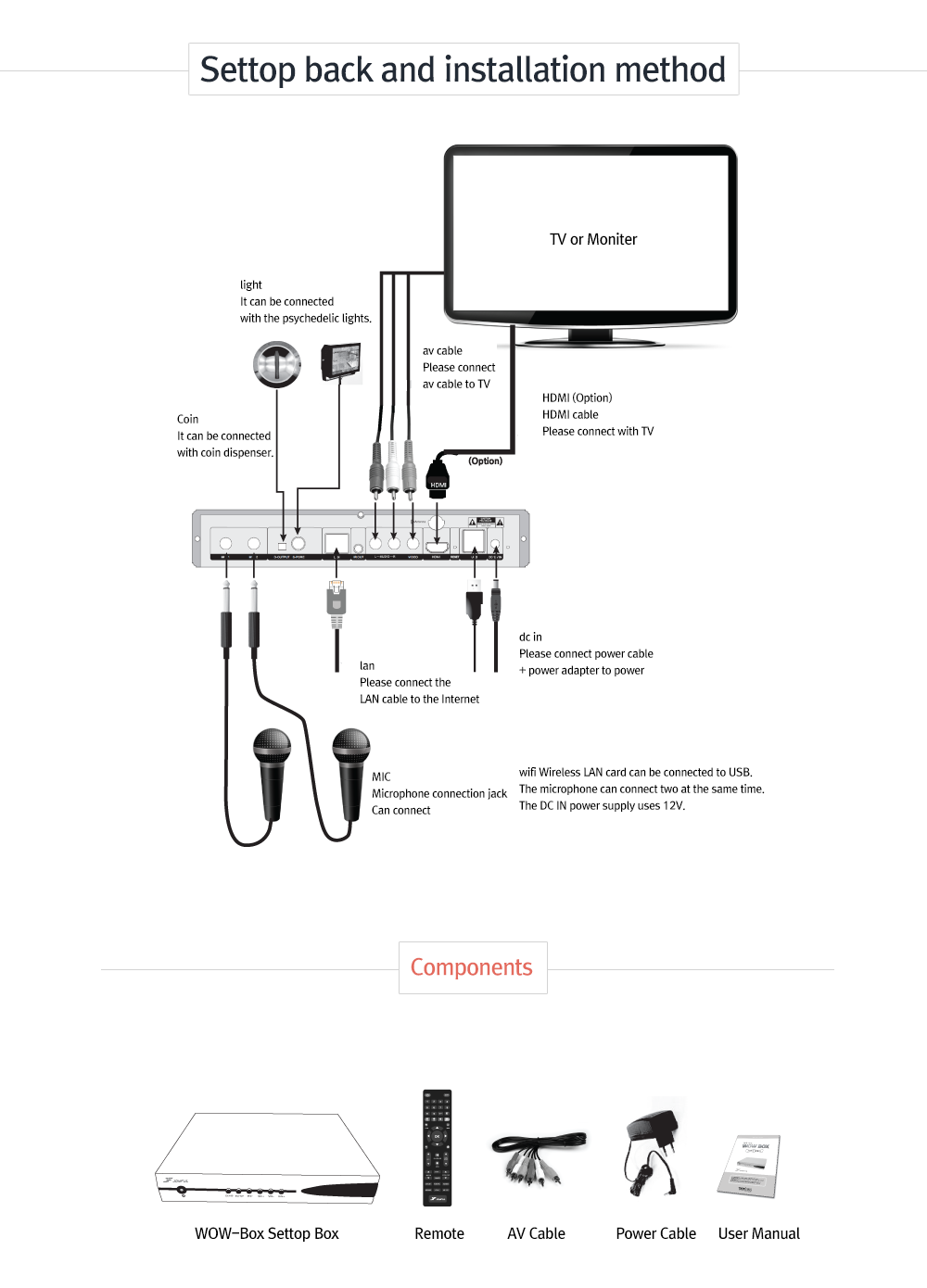

Safety Instructions and Precaution Features Fully compliant with DVB-S2, DVB-T2, DVB-C standard.(for 3 standards Combine version). DVB-S2 twin tuner. (for twin DVB-S2 version) DTMB standard. (for DTMB version) Support MPEG-2 , MPEG-4 / H.264 , 4K and H.265 HD decoding Dolby AC-3 two-channel mixed output Dolby 5.1 channel or PCM digital audio output (Bit stream) HDMI Output: Support 2160P / 1080P / 1080i / 720P / 576P / 576i / AUTO USB3.0 port for PVR 7 days Electronic Program Guide USB port upgrade software Easy Menu System with both Multi-language and 32 Bit true color OSD 5000 TV/Radio Channel Capacity & Last Channel Memory Supported. The set can automatically identify the file types from U disk, automatically select the file to play. Progress can be recorded to play via USB2.0 / USB3.0 external hard drives Front Panel and Rear Panel 1. Front Panel POWER：To Switch your receiver on from standby or standby to on. MENU：Press to display the Main Menu. OK： Press to select the item in the menue or to list the TV/Radio channels. CH+/CH- ：Change the channel or move cursor in the menu. VOL+/VOL-： Adjust volume or move cursor in the menu. 2. Rear Panel ANT IN：Connect to the satellite dish for signal. USB2.0：Connect to USB2.0 device. USB3.0：Connect to USB3.0/USB2.0 device. HDMI：HDMI video output. CVBS：Connect TV set via RCA output (Video, Audio L&R). S/PDIF: Digial audio output. ON/OFF：Switch for DC power. Step1: Please refer to system connection diagram, ensure that the antenna, the TV set , set-top box is connected correctly Step 2: Switch the TV set to the video status Step 3: Open the power supply of STB After you make sure that the rear panel connections for each interface are correct, press the power button located on the rear panel of the set-top box. When the set top box starts, LED display will show the initialization state. Please turn on the TV, and the TV switches to the video status. If there are programs stored within the STB, the LED display will show the channel number and signal strength. Step 4: Add the program If there is no pre-existing program within the set-top box, or if you want to add a new program, you need to program search. For details you can refer to channel search chapter. Step 5: Play program In broadcast mode, press 0K key can directly pop up channel list window on the remote control. After the adoption ▲ ▼ keys to select the desired channel press 0K key to watch. Note: All functions are available through the keys on the remote control to achieve, you can achieve some functionality through set top box's front panel. If you encounter difficulties while using this unit, please refer to the instructions in the |
| Technical Specification | |
| Tuner specification | |
| Frequency Rage | 48~860MHz, 50~862MHz, 950 ~2150MHz |
| Input Lever | -25~+20dBmV,35dBuV~115dBuV,QPSK:-75dBm~-25dBm |
| Demodulators | |
| Standard | DTMB,DVB-C,DVB-S2,DVB-T2 |
| Demodulation | OFDM, QAM, QPSK/8PSK |
| Band width | 6M/7M/8M |
| Video Decoder | |
| Follow the standard | MP@HL/ML，H.264 HD/SD，H.265, AVS+ |
| Video decoder format | 4：3，6：9 |
| Video format | Automatic PAL/NTSC |
| Audio Decoder | |
| Standard | ISO/IEC 13818-3 TR101154 |
| Audio decoder format | MPEG1，AC3 |
| Audio channel | Left audio/Right audio/ Stereo |
| volume | 32 levers |
| Power supply | |
| Input voltage | AC100 ~ 240V, 50/60Hz |
| Power Consumption | Max. 20W |
| Normal | |
| Operating temperature | 0°C ~ 40°C |
| Problem | Possible Causes | Solutions |
| No display or no power supply | The Power cord is not plugged in or bad power socket. | Check that the power cable is plugged into the power socket. |
| No Sound , no picture | STB is in standby mode | Press the Power key of Remote Control Unit. |
| “No Signal ”on the screen | The Signal cable is connected incorrect. | Check the LNB and replace LNB if necessary. Check the LNB cable. Check the Dish and adjust it. |
| TV set without signal | Check the signal strength and the signal quality in the menu. | |
| No Picture | Video cable off | Check the dish and adjust it. Check the cable connection. Check channel and video output. |
| STB is broadcasting | Normal | |
| No Sound | Audio cable is not connected | Check the cable connection |
| STB is muted | Check the mute status of TV and receiver. | |
| Audio parameters set incorrectly | Check audio parameters and correct. | |
| Minimum Volume | Check the volume lever of the TV and receiver. | |
| Noises or the sound and the content do not match. | The left and right Audio channel are not consistent | Check the sound channel and correct |
| Image pause or mosaic | Signal is too weak | Check the signal cable is good |
| Remote Control Unit (RCU) does not work | Not aim RCU directly to the front panel of the receiver | Aim RCU directly to the receiver. Check that nothing blocks the front panel. |
| The batteries are exhausted | Replace batteries |
Note: If you are referring to the above solutions does not solve the current problem, do not disassemble the machine. You should contact your local retailer.
